| MODEL | LED600I | LED600S | LED600II | LED7060 | LED700I | LED700II | ||
| POWER SUPPLY | A.C.220 V 50 Hz | |||||||
| INPUT POWER | 55VA | 110VA | 115VA | 60VA | 120VA | |||
| Color temperature (K) | 3000k～6000k | |||||||
| SPECIFICATIONS | MAIN LIGHT | Φ600mm | Φ700mm | Φ700mm | ||||
| SIDE LAMP | —— | Φ600mm | —— | |||||
| CENTRAL ILLUMINATION (lx) | THE MAIN LIGHT | 80000-160000 | 100000-160000 | 100000-160000 | ||||
| SIDE LAMP | —— | 80000-160000 | —— | |||||
| SPOT DIAMETER d10(mm) |
THE MAIN LIGHT | 130mm | 150mm | 150mm | ||||
| SIDE LAMP | —— | 130mm | —— | |||||
| SPOT DIAMETER d50(mm) |
THE MAIN LIGHT | 75mm | 85mm | 85mm | ||||
| SIDE LAMP | —— | 75mm | —— | |||||
| SHADOWLESS EFFECT | THE SINGLE COVER RATE (lx) | THE MAIN LIGHT | ﹥35%（28000-56000） | ﹥35%（35000-56000） | ﹥35%（35000-56000） | |||
| SIDE LAMP | —— | ﹥35%（28000-56000） | —— | |||||
| DOUBLE RATE COVER PLATE (lx) | THE MAIN LIGHT | ﹥35%（28000-56000） | ﹥35%（35000-56000） | ﹥35%（35000-56000） | ||||
| SIDE LAMP | —— | ﹥35%（28000-56000） | —— | |||||
| DEEP CAVITY ILLUMINATION (lx) | THE MAIN LIGHT | ﹥80%（64000-128000） | ﹥80%（80000-128000） | ﹥80%（80000-128000） | ||||
| SIDE LAMP | —— | ﹥80%（64000-128000） | —— | |||||
| SINGLE DARK COVER BOARD OF CAVITY (lx) | THE MAIN LIGHT | ﹥35%（28000-56000） | ﹥35%（35000-56000） | ﹥35%（35000-56000） | ||||
| SIDE LAMP | —— | ﹥35%（28000-56000） | —— | |||||
| DOUBLE DARK COVER BOARD OF CAVITY (lx) | THE MAIN LIGHT | ﹥35%（28000-56000） | ﹥35%（35000-56000） | ﹥35%（35000-56000） | ||||
| SIDE LAMP | —— | ﹥35%（28000-56000） | —— | |||||
| *BULB POWER（LED） | 3V-3.4V/3W | |||||||
| BEAM DEPTH | ≥600mm | |||||||
| COLOR RENDERING INDEX(Ra) | 85～100 | |||||||
| **TOTAL IRRADIANCE | A single lamp does not exceed the total irradiance1000W/m2 | |||||||
| MAXIMUM LASER OUTPUT | 5.3mW | |||||||
| LASER EMISSION WAVELENGTH | 400nm-700nm | |||||||
| Note: working at the rated voltage, the lamp is sustainable for more than 5000 hours. | ||||||||
| Note: some lamp lighting area overlap irradiance may exceed 1000W/m2 | ||||||||
| Our factory preserves column specifications and pictures, to the website in the text and change the rights of additions and deletions | ||||||||

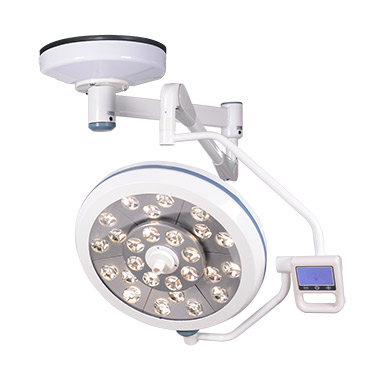

LED600I

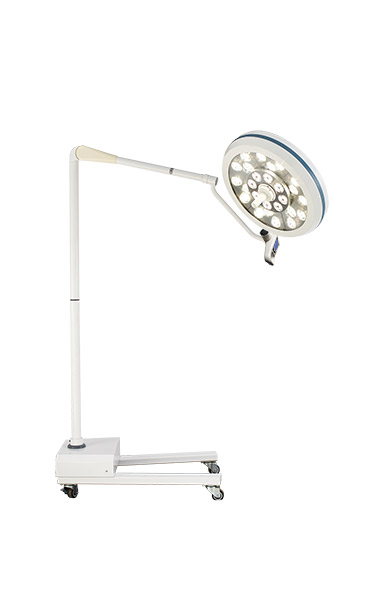

LED600S

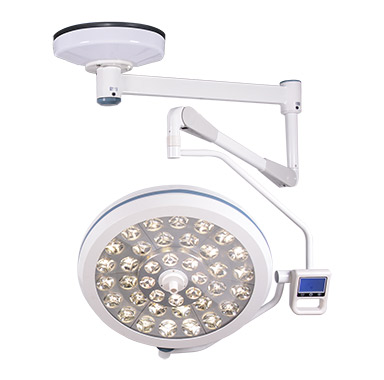

LED700I

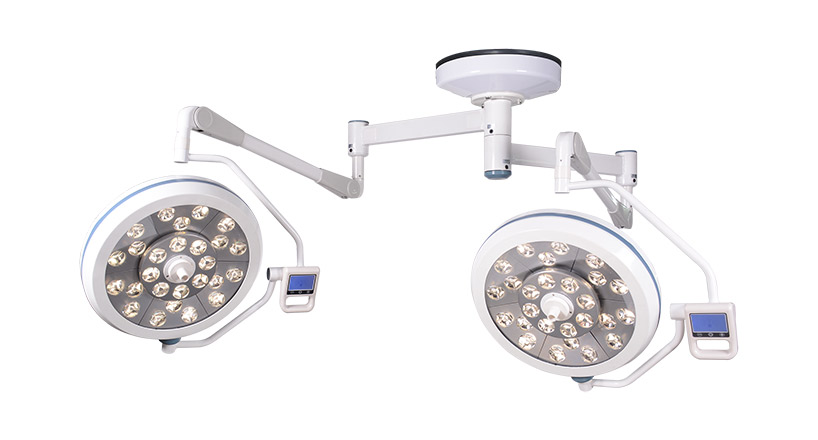

LED600II

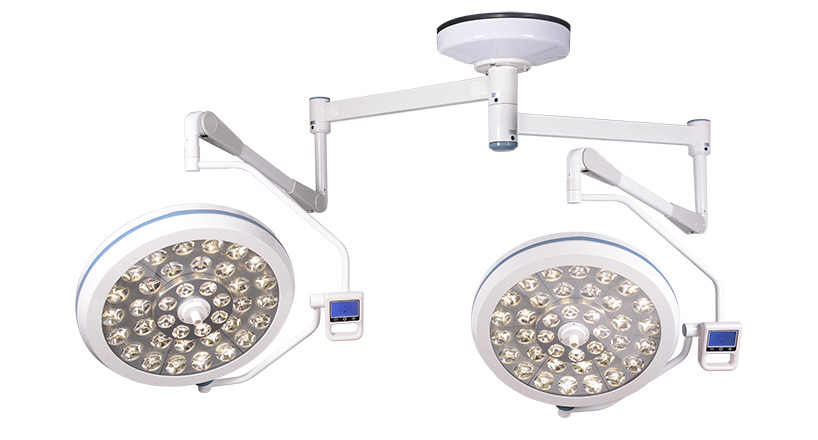

LED700II

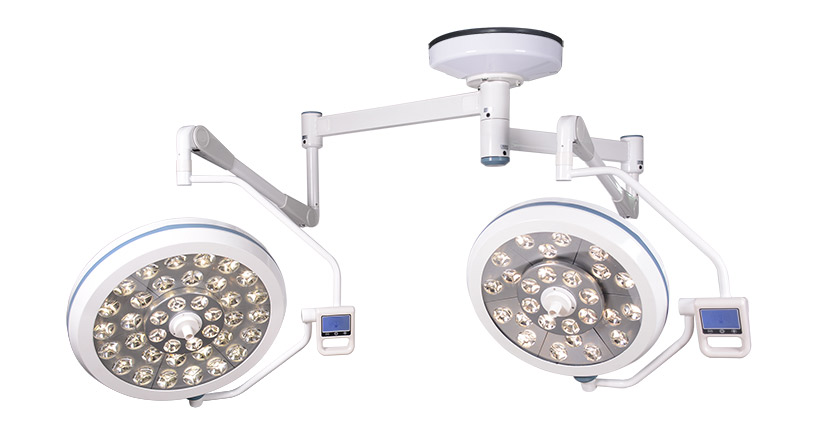

LED7060
