| MODEL | LED3TI | LED3TII | LED3T4T | LED4TI | LED4TII | ||
| LED3TS | LED4TS | ||||||
| POWER SUPPLY | A.C.220 V 50 HZ | ||||||
| INPUT POWER | 50VA | 100VA | 120VA | 60VA | 120VA | ||
| Color temperature (K) | 3000-6000 | ||||||
| SPECIFICATIONS | THE MAIN LIGHT | 3 HOLE | 4 HOLE | 4 HOLE | |||
| SIDE LAMP | —— | 3 HOLE | —— | ||||
| ILLUMINATION (lx) | THE MAIN LIGHT | 70000-160000 | 80000-160000 | 80000-160000 | |||
| SIDE LAMP | —— | 70000-160000 | —— | ||||
| SPOT DIAMETERd10(mm) | THE MAIN LIGHT | 120 | 140 | 140 | |||
| SIDE LAMP | —— | 120 | —— | ||||
| SPOT DIAMETERd50(mm) | THE MAIN LIGHT | 70 | 80 | 80 | |||
| SIDE LAMP | —— | 70 | —— | ||||
| SHADOWLESS EFFECT | THE SINGLE COVER RATE (lx) | THE MAIN LIGHT | ≥45%（31500-72000） | ≥45%（36000-72000） | ≥45%（36000-72000） | ||
| SIDE LAMP | —— | ≥45%（31500-72000） | |||||
| DOUBLE RATE COVER PLATE (lx) | THE MAIN LIGHT | ≥45%（31500-72000） | ≥45%（36000-72000） | ≥45%（36000-72000） | |||
| SIDE LAMP | —— | ≥45%（31500-72000） | |||||
| DEEP CAVITY ILLUMINATION (lx) | THE MAIN LIGHT | ≥65%（45500-104000） | ≥65%（52000-104000） | ≥65%（52000-104000） | |||
| SIDE LAMP | —— | ≥65%（45500lx~104000lx） | |||||
| SINGLE DARK COVER BOARD OF CAVITY (lx) | THE MAIN LIGHT | ≥30%（21000-48000） | ≥30%（24000-48000） | ≥30%（24000-48000） | |||
| SIDE LAMP | —— | ≥30%（21000-48000） | |||||
| DOUBLE DARK COVER BOARD OF CAVITY (lx) | THE MAIN LIGHT | ≥30%（21000-48000） | ≥30%（24000-48000） | ≥30%（24000-48000） | |||
| SIDE LAMP | —— | ≥30%（21000-48000） | —— | ||||
| *BULB POWER | 3V~3.4V/3W | ||||||
| BEAM DEPTH | ≥600mm | ||||||
| COLOR RENDERING INDEX(Ra) | 85-100 | ||||||
| **TOTAL IRRADIANCE | A single lamp should not exceed 1000 of total irradiance | ||||||
| MAXIMUM LASER OUTPUT | 5.3mW | ||||||
| LASER EMISSION WAVELENGTH | 400nm-700nm | ||||||
| *Note: working at the rated voltage, the lamp is sustainable for more than 5000 hours.。 | |||||||
| **Note: some lamp lighting area overlap irradiance may exceed 1000W/m2 | |||||||
| Our factory preserves column specifications and pictures, to the website in the text and change the rights of additions and deletions | |||||||

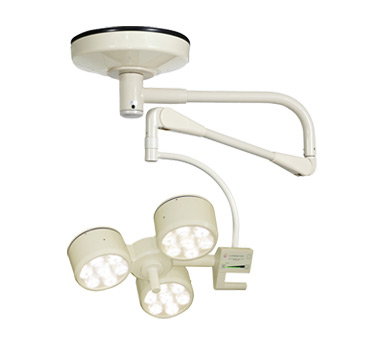

LED3TI
LED3TS

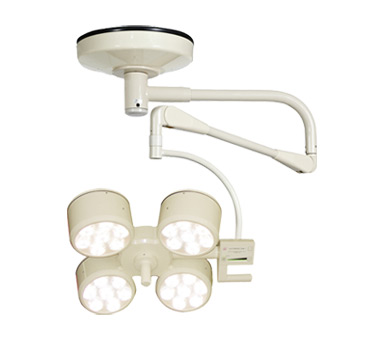

LED4TI

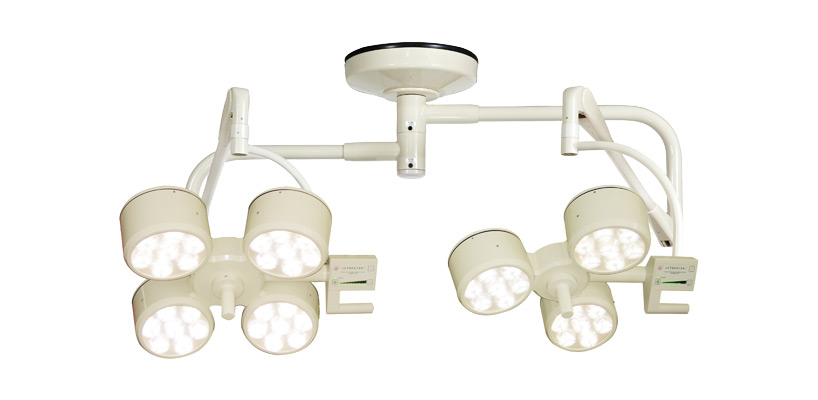

LED3T4T

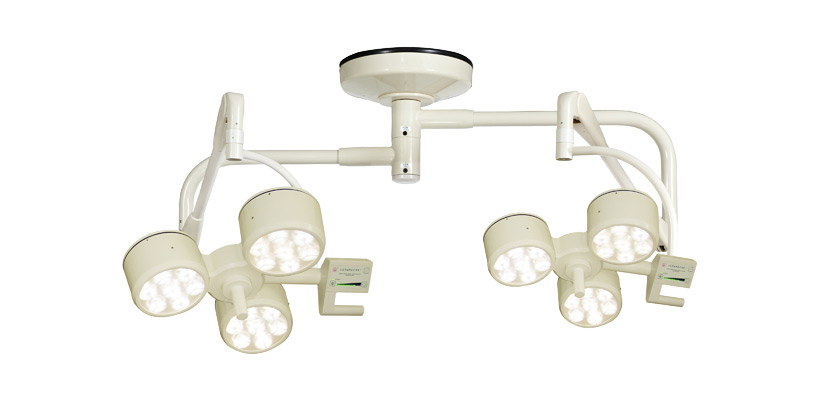

LED3TII

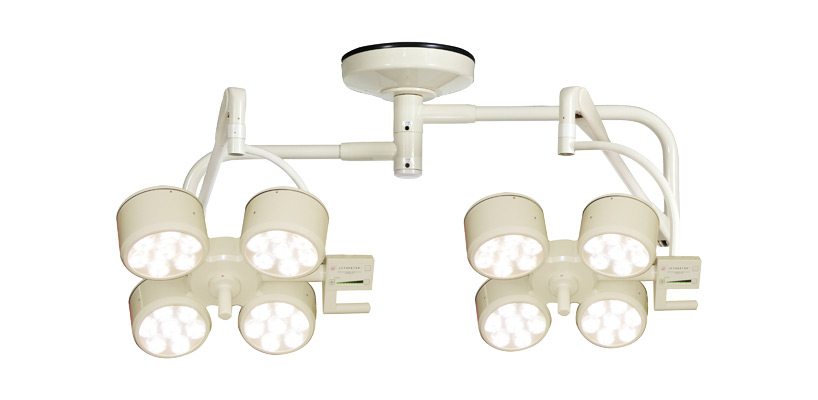

LED4TII
